Building Management System

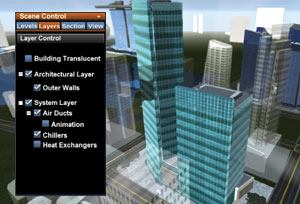

• Control current view through toggling visibility of building by level, architectural layer or system layer.

• Different plant room can be access easily with location shortcut.

• Capable of converting existing BIM models to navigable 3D environments.

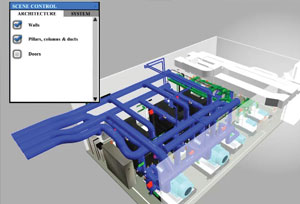

• Control current view through toggling visibility based on equipment category.

• Monitor status of equipment such as chiller based on the color of highlight. For instance, green highlight represents that the equipment is on and running normally and red indicates fault.

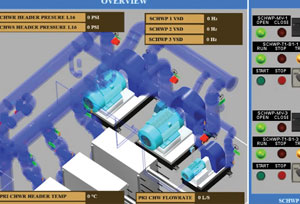

• Scrutinize information through various presentation layouts such as individual equipment summary page, dashboard page or overview page.

• Instantly locate equipment within a plant room.

• Visual feedback on 3D graphics based on sensor data.

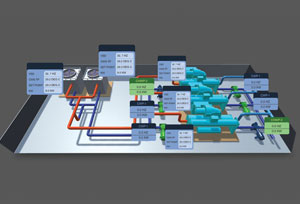

• Display critical data on top of important equipment.

• Focus on capturing key parameters of equipment.

• Narrow down data viewing based on equipment or system category.

• Support BACnet / OPC chiller plant system.

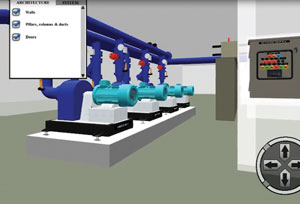

• Freely navigate 3D scene and explore around in first person perspective.

• Control your movement using directional pads and walk through virtual 3D plant like in a video game. Rotate your view and move around in first person view without lifting off the floor.

• Bring you closer to the equipment of your interest with just a double click.

• Animation feedback on 3D models based on live data.

• Monitor the state of equipment such as cooling tower, pump, chiller through intuitive animation of cooling tower fans, pump fans and chiller fans.

• View all data pertaining to chiller plant system at a glance.

• Quickly identify problem through different color-coding for data value.

• Display data in the forms of timeline bar chart, pie chart, radial gauge or table format.

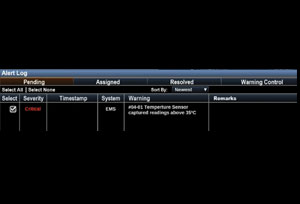

• Display alert notification when detect system faults or fault in equipment.

• Pop up alert when critical data goes out of acceptable range.

• Expand monitoring of chiller plant system in single location to multiple plants in different locations
